Thin film surface mount resistors
High-precision resistne tolerance ansd TCR
Metal thin film chip resistors (the highest precision) RG(LL) series AEC-Q200 Compliant

  • Lead free
  • Halogen free
  • RoHS Compliance
  • High Reliability
  • High Precision
  • AEC-Q200 Compliant
  • High-temperature operation
  • High power
  • Anti-surge
  • Non-magnetic
  • High-Resolution Audio
  • Anti-sulfur
  • trimmable
  • leads

- Contents

PDF Catalogue
3 pages/

Recommended
land patterns

Dimensions of
the packaging reel

Dimensions of
the packaging tape

- Features & Applications

Features

  • The tightest resistance tolerance: +/-0.01%
  • The smallest temperature coefficient of resistance: ±2ppm/℃
  • Long term stability with inorganic passivation
  • Thin film structure enabling low noise and anti-sulfur

Applications

  • Industrial measurement,electrical scales
  • High precision sensors, medical electronics lustrial

- Specifications

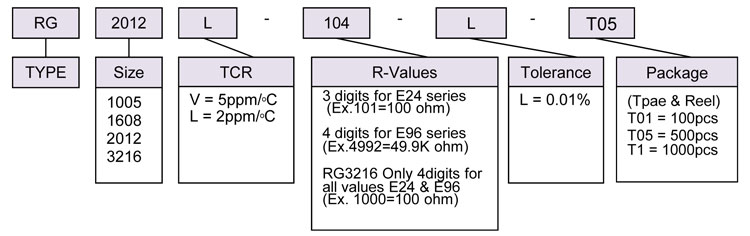

◆Part numbering system

◆Electrical Specification

Type Size Power Rating at 85℃ Resistance Tolerance (Code) Resistance Rnage (ohm) Temperature Cofficient (Code) Max. operating Voltage Resistance Vaues (E-series) Packaging
Regular Ultra Reliability (ppm/℃)
RG1005 0402 0.063W 0.032W ±0.01%(L) 240 - 3.9K 5(V) 25V E-24,E-96 T05:500pcs
T1:1000pcs
RG1608 0603 0.1W 0.063W 240 - 7.5K 5(V) 75V
RG2012 0805 0.125W 0.1W 250 - 36K 5(V) 150V
2(L)
RG3216 1206 0.25W 0.125W 250 - 68K 5(V) 200V
2(L)

◆Dimensions

Type Size
(inch)
L W a b t
RG1005 0402 1.00+0.1/-0.05 0.50±0.05 0.20±0.10 0.25±0.05 0.35±0.05
RG1608 0603 1.60±0.20 0.80±0.20 0.30±0.20 0.30±0.20 0.40±0.10
RG2012 0805 2.00±0.20 1.25±0.20 0.40±0.20 0.40±0.20 0.40±0.10
RG3216 1206 3.20±0.20 1.60±0.20 0.50±0.25 0.50±0.20 0.40±0.10

(unit:mm)

◆Reliability specification

Item Test Methode Performance of High Reliability
Rgluar Ultra-Reliability Typical
Short Time Overload 2.5 times of Rated Load X 5sec. +/- 0.05% +/- 0.05% +/- 0.01%
Load Life 85℃ Rated Load 90min. On/ 30min. Off
per Cycle X1000
+/- 0.25% +/- 0.1% +/- 0.01%
Temp. Hum. Biasa 85℃ 85% RH 1/10 power loaded 90min. On/ 30min. Off
per Cycle X1000
+/- 0.25% +/- 0.1% +/- 0.05%
Temperature Cycles -55℃ (30min)/room temp.(2min) /
+125℃(30min)/room temp.(2min) No Load per Cycle X1000
+/- 0.1% +/- 0.1% +/- 0.05%
High Temperature 155℃ for 1000h with No Load +/- 0.1% +/- 0.1% +/- 0.01%

◆10000 hour reliability test data

○Biased life test

○High temperature high humidity (biased)

○Temperature shock

○High temperature exposure

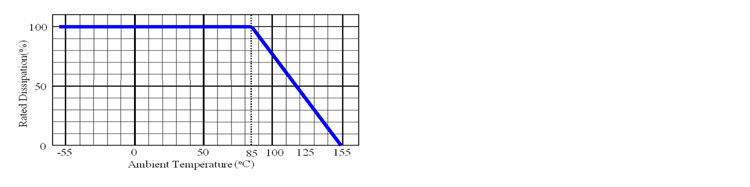

◆Derating Curve

Please feel free to contact us about products,
requesting documents and samples.
