The thin film line of high frequency chip products has expanded to include off the shelf impedance converter. Space savings and excellent performance can be seen with this product.

　

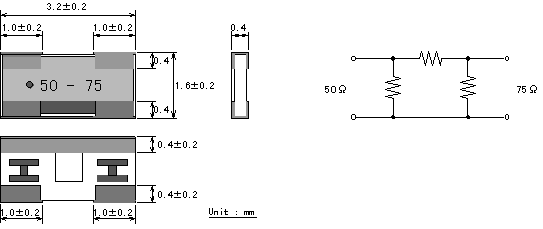

Mechanical ------------------------ Schematic Diagram

　

　

Electrical

Item

Specification

Characteristic Impedance

50 ohm / 75 ohm

Insertion Loss

6 +/- 0.3 dB

Frequency Range

DC ～ 1.5 GHz

Rated Input Power

125 mW

Rated Operation Temperture

70℃

Operating Temperature Range

－55℃ ～ ＋125℃

Characteristics

Test Item

Test Condition

To meet

Short-time Overload

  Rated Voltage × 2.5, 5sec.

+/- 0.05 dB

Resistance to Soldering Heat

   260 +/- 5℃, 10 +/- 1sec.

+/- 0.05 dB

Temperature Cycle

－55℃ ⇔ ＋125℃, 5cycles

+/- 0.05 dB

Solderability

  235 +/- 5℃, 3 +/- 0.5sec.

More than 95%

Moisture Load Life

60 +/- 2℃ 90 ～ 95%, 1000H

+/- 0.1 dB

Load Life

70 +/- 3℃, 1000H

+/- 0.1 dB

　

Part Number

-- -PCH ------------1632 -----------50/75---------- T------------ T ：Taping

Product Code----- Package Size----- Impedance----- Package ---------B ：Bulk
