PXV1220S Thermal Variable Attenuator  Application

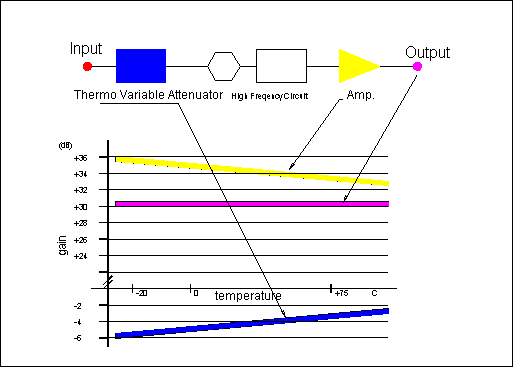

Series connection of high frequency amplifier and thermo variable attenuator can make the output power unchangeable against temperature change in a circuit.

This is because the less the amplifier gets gain, on the contrast, the less the thermo variable attenuator gets attenuation with temperature rise.

    This can make auto gain control circuit for temperature simpler with lower price than by the means of feedback adjusting.
