Current sensing surface mount resistors
Low resistance resistors with long side terminal.
Low resistance chip resistors (long-side terminal) PRL/RL series

  • Lead free ※
  • Halogen free
  • RoHS Compliance
  • High Precision
  • AEC-Q200 Compliant
  • Large current sensing
  • Wide operating temperature range
  • Low EMF
  • jumper
※Some of products are not complete lead free. Please contact us about these product detail.
Open part number / series detail inquiry
  • Narrow down from PRL/RL series

    Series

    Size

    Power

    Resistance value

    ~

    Temperature coefficient of resistance

    Resistance tolerance

    Packaging

    Products number search

    Search Contact Reset

    ※Please contact us for more information or if you cannot find what you are looking for such as equivalent products for old part number

PRL/RL - Contents

PDF Catalogue
2 pages/

Recommended
land patterns

Recommended reflow soldering profile

Dimensions of
the packaging reel

Dimensions of
the packaging tape

Product Introduction Videos

PRL/RL - Features & Applications

Features

  • Innovative structure that takes consideration of heat dissipation suppresses the surface temperature enabling the small sizes, reduction of the influence on surrounding components, excellent temperature cycle resistance, low ESL and low noise.

Applications

  • PC power sources, inverters, automotive electronics, adopters, industrial machines
低抵抗チップ抵抗器(長辺電極)

PRL/RL - Specifications

◆Part numbering system

◆Electrical Specification

Type Power
ratings
Temperature
coefficient
of resistance
Resistance range(Ω) Resistance tolerance Maximum
voltage
Resistance
value series
Operating
temperature
Packaging
quantity
(ppm/℃) ±0.5%(D) ±1%(F) ±2%(G) ±5%(J)
PRL0816 1/3W ±50 75m≦R≦100m ー ー √(P・R) E-24 -40℃
~
125℃
T5
±100 43m≦R≦68m
ー 33m≦R≦39m
0 ~ +200 ー 18m≦R≦27m
0 ~ +350 ー 10m≦R≦15m
PRL1220 2/3W ±50 56m≦R≦100m ー E-24
1m step
(7m ~ 10m)
±100 47m≦R≦51m
ー 20m≦R≦43m
0 ~ +200 ー 10m≦R≦18m
0 ~ +350 ー 7m≦R≦9m
PRL1632 1W ±50 56m≦R≦100m ー E-24
1m step
(5m ~ 10m)
±100 20m≦R≦51m
0 ~ +200 10m≦R≦18m
0 ~ +350 ー 5m≦R≦9m
PRL3264 2W ±50 56m≦R≦100m ー E-24
1m step
(3m ~ 10m)
47m≦R≦51m
±100 ー 20m≦R≦43m
0 ~ +200 ー 10m≦R≦18m
0 ~ +350 ー 5m≦R≦9m 3m≦R≦4m
RL3720W 1W ±50(Q) ー 100m≦R≦1 ー E-24
1m step
(1m ~ 10m)
-55℃
~ 125℃
4,000pcs
±100(R)
0 ~ +200(S) ー
5m≦R≦91m
0 ~ +350(T) ー
1m≦R≦4m
RL7520W 2W ±50(Q) ー 100m≦R≦470m ー E-24
1m step
(1m ~ 10m)
±100(R)
10m≦R≦91m
0 ~ +200(S) ー 100m≦R≦470m
0 ~ +350(T) ー 10m≦R≦91m
0 ~ +420(T) ー 5m≦R≦9m
0 ~ +800(T) ー 1m≦R≦4m

◆Dimensions

Type Size
(inch)
L W a b t
PRL0816 0603 0.80±0.20 1.60±0.20 ー 0.20±0.10 0.40±0.10
PRL1220 0805 1.25±0.20 2.00±0.20 ー 0.35±0.15 0.50±0.10
PRL1632 1206 1.60±0.20 3.20±0.20 ー 0.45±0.15 0.50±0.10
PRL3264 2512 3.20±0.20 6.40±0.20 ー 0.90±0.15 0.50±0.10
RL3720W 1508 2.00±0.20 3.75±0.30 0.40±0.20 0.40+0.20 0.50±0.20
RL7520W 3008 2.00±0.20 7.50±0.30 0.40±0.20 0.40±0.20 0.50±0.20

(unit:mm)

◆ESL (Equivalent series inductance)

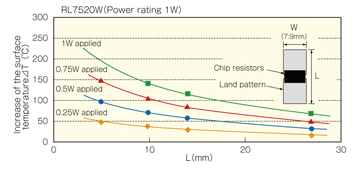

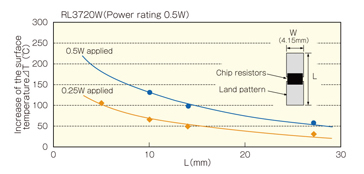

◆Surface temperature data

○The high power type land pattern and
 surface temperature

These high-power low resistance chip resistors are designed to dissipate heat efficiently
through the land patterns on circuit boards. The actual temperature of the surface of the
resistor is dependent upon the dimensions and the shape of the land patterns.

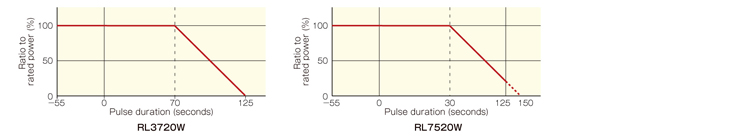

◆Derating Curve

◆Resistance to power pulse

Test procedure

Voltage pulse is applied to the test samples mounted
on the test board.
After each pulse, resistance drift is measured. Pulse
vol tage is increased until the drift exceeds +/-0.5%.
The power at that voltage is defined as the maximum
pulse power.
