High frequency surface mount components
Small and high power chip terminators
High power thin film chip terminator PCS/HPT series

  • Lead free
  • Halogen free
  • RoHS Compliance

PCS/HPT - Contents

PDF Catalogue
4 pages/

Recommended reflow soldering profile

Dimensions of
the packaging reel

Dimensions of
the packaging tape

※Since the land pattern differs for each series, it is described in the PDF catalogue for each series

>>Contatct

PCS/HPT - Features & Applications

Features

  • Small high power chip terminator with aluminum nitride and aluminum oxide substrate
  • Efficient heat dissipation provides high power, anti-surge, overload protection.
  • Wrap around terminals provide easy and reliable soldering.
  • Thin film does not have any innate stress. Therefore, repeated power cycling does not fatigue the element and cause no change in impedance.

Applications

  • Wireless base station, wireless communication devices, and high frequency power source
高電力薄膜チップ終端器

PCS/HPT - Specifications

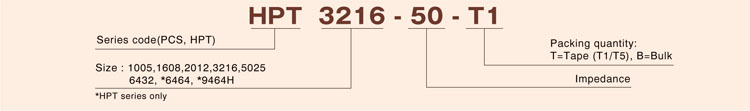

◆Part numbering system

◆Electrical Specification

PCS series (Alumina substrate)
Type PCS1005 PCS1608 PCS2012 PCS3216 PCS5025 PCS6432
Rated Power 200mW 500mW 1W 2W 5W 10W
VSWR DC~3GHz 1.2 1.2 1.2 1.2 1.3 1.2
3.1~5GHz 1.2 1.2 1.3 1.3 1.4 1.5
5.1~7.5GHz 1.3 1.3 1.3 1.4 1.5 ー
7.6~10GHz 1.3 1.3 1.4 1.5 ー ー
10.1~12.5GHz 1.4 1.4 1.5 ー ー ー
12.6~15GHz 1.5 1.5 ー ー ー ー
Operating temperature -55℃~+125℃
Rated operating temperature +70℃
Packaging quantity 100/ bag(B) 1000pcs/reel (T1) 5000pcs/reel (T5)
HPT series (ALN substrate)
Type HPT1608 HPT2012 HPT3216 HPT5025 HPT6432 HPT6464 HPT9464H
Rated Power 2.5W 5W 10W 20W 30W 60W 100W
VSWR DC~3GHz 1.2 1.2 1.2 1.3 1.3 1.3 1.3
3.1~5GHz 1.2 1.3 1.3 1.5 1.5 ー ー
5.1~7.5GHz 1.3 1.3 1.4 ー ー ー ー
7.6~10GHz 1.3 1.4 1.5 ー ー ー ー
10.1~12.5GHz 1.4 1.5 ー ー ー ー ー
12.6~15GHz 1.5 ー ー ー ー ー ー
Operating temperature -40℃~+155℃
Rated operating temperature +100℃ at Terminal
Packaging quantity 100/ bag(B) 1000pcs/reel (T1) 5000pcs/reel (T5) 100/B, T1

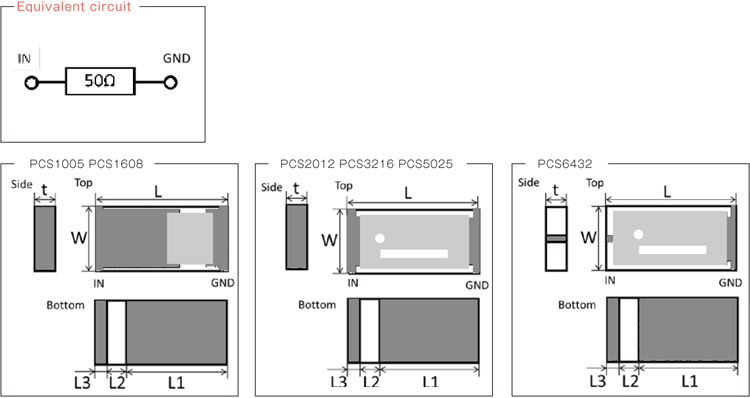

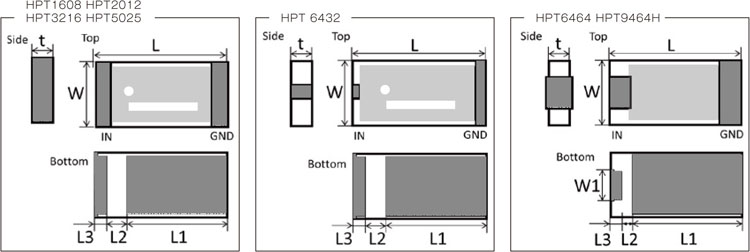

◆Dimension, Equivalent Circuit and pin arrangement

Type Size
(inch)
L W t L1 L2 L3
PCS1005 0402 1.00±0.10 0.50±0.10 0.30±0.10 0.65±0.10 0.20±0.10 0.15±0.10
PCS1608 0603 1.60±0.15 0.80±0.15 0.40±0.10 1.10±0.15 0.30±0.15 0.20±0.15
PCS2012 0805 2.00±0.15 1.25±0.15 0.40±0.10 1.50±0.15 0.30±0.15 0.20±0.15
PCS3216 1206 3.20±0.20 1.60±0.20 0.40±0.10 2.70±0.20 0.30±0.15 0.20±0.15
PCS5025 2010 5.00±0.20 2.50±0.20 0.40±0.10 4.30±0.20 0.40±0.15 0.30±0.15
PCS6432 2512 6.40±0.20 3.20±0.20 0.40±0.10 5.70±0.20 0.40±0.15 0.30±0.15
Type Size
(inch)
L W t L1 L2 L3 W1
HPT1608 0603 1.60±0.15 0.80±0.15 0.40±0.10 1.10±0.15 0.30±0.15 0.20±0.15 ー
HPT2012 0805 2.00±0.15 1.25±0.15 0.40±0.10 1.50±0.15 0.30±0.15 0.20±0.15 ー
HPT3216 1206 3.20±0.20 1.60±0.20 0.40±0.10 2.70±0.20 0.30±0.15 0.20±0.15 ー
HPT5025 2010 5.00±0.20 2.50±0.20 0.65±0.10 3.60±0.20 0.90±0.20 0.50±0.15 ー
HPT6432 2512 6.40±0.20 3.20±0.20 0.65±0.10 5.50±0.20 0.70±0.15 0.20±0.15 ー
HPT6464 2525 6.30±0.20 6.30±0.20 0.65±0.10 4.90±0.20 0.65±0.15 0.75±0.15 3.05±0.20
HPT9464H 3725 9.40±0.20 6.30±0.20 0.65±0.10 7.10±0.20 1.15±0.15 1.15±0.15 3.00±0.20

(unit:mm)

Detailed information other than the above is described in PDF.

PDF Catalogue / 4 pages

Please feel free to contact us about products,
requesting documents and samples.
